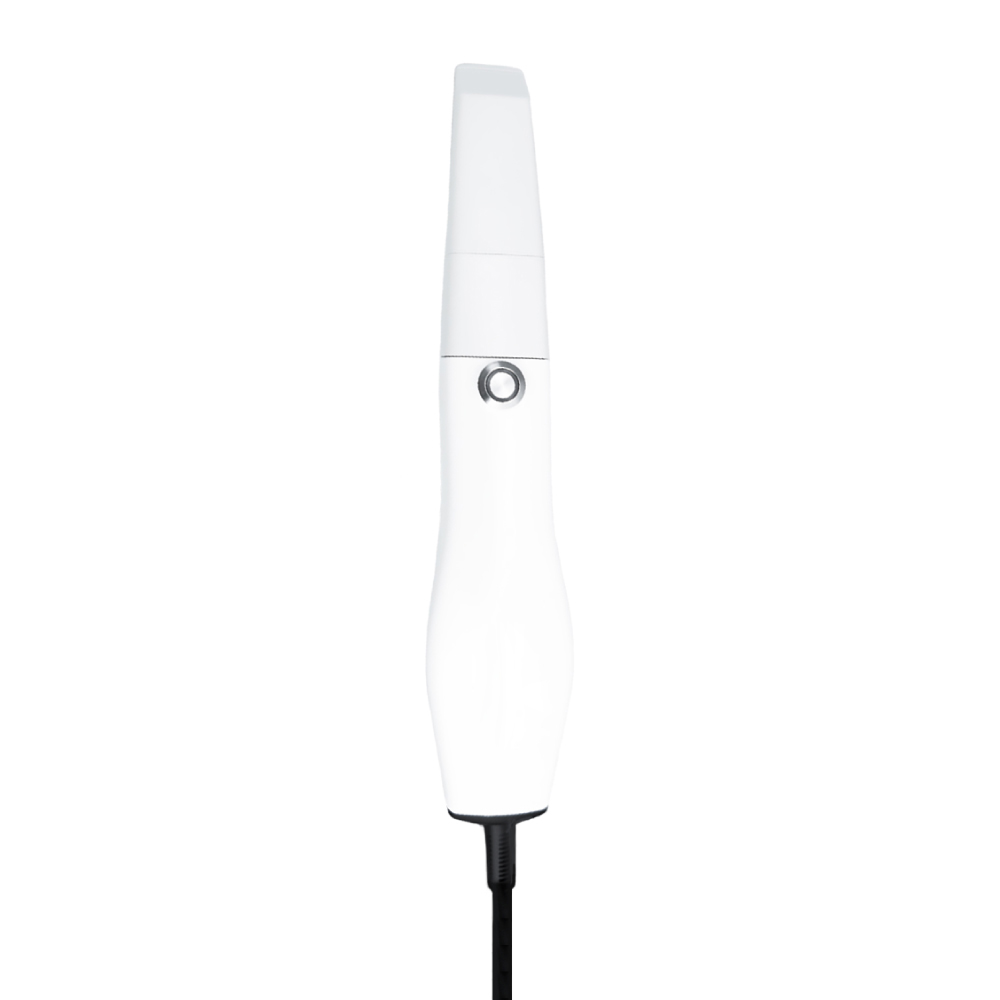

Dental Panda P3 3D Intraoral Scanner

The digitalization of dentistry has helped doctors and patients in many ways. Dental scanners make diagnosis and treatment faster, more comfortable and more efficient. So, if you want easy dental treatment, then PANDA series intraoral scanner should be in your clinic

Inquire Now Next Product

Product Introduction

PANDA series intraoral scanners have taken the task of obtaining dental impressions to a whole new level and more and more dentists are looking to incorporate it into their practice.

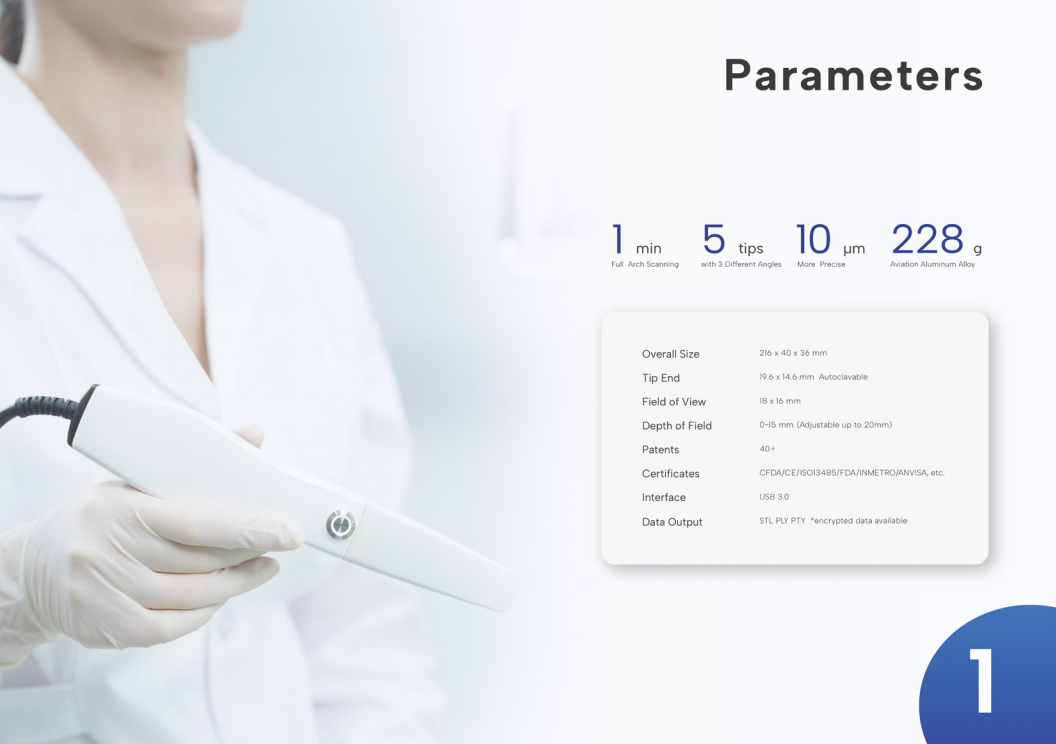

Technology	Staring Scanning with Coded Structure Light
Camera Number	x3
Scan Field	18x16mm
Scan Depth	0-15 mm (Adjustable up to 20mm)
Accuracy	s15μm
Precision	s10μm
True Color	Full HD
Anti Fog System	Intelligent Heating
Full Arch Scanning Time	1 min
Handpiece Enclosure	Aviation Aluminum Alloy
Handpiece Dimension	216 x 40x 36 mm
Handpiece Weight	228g

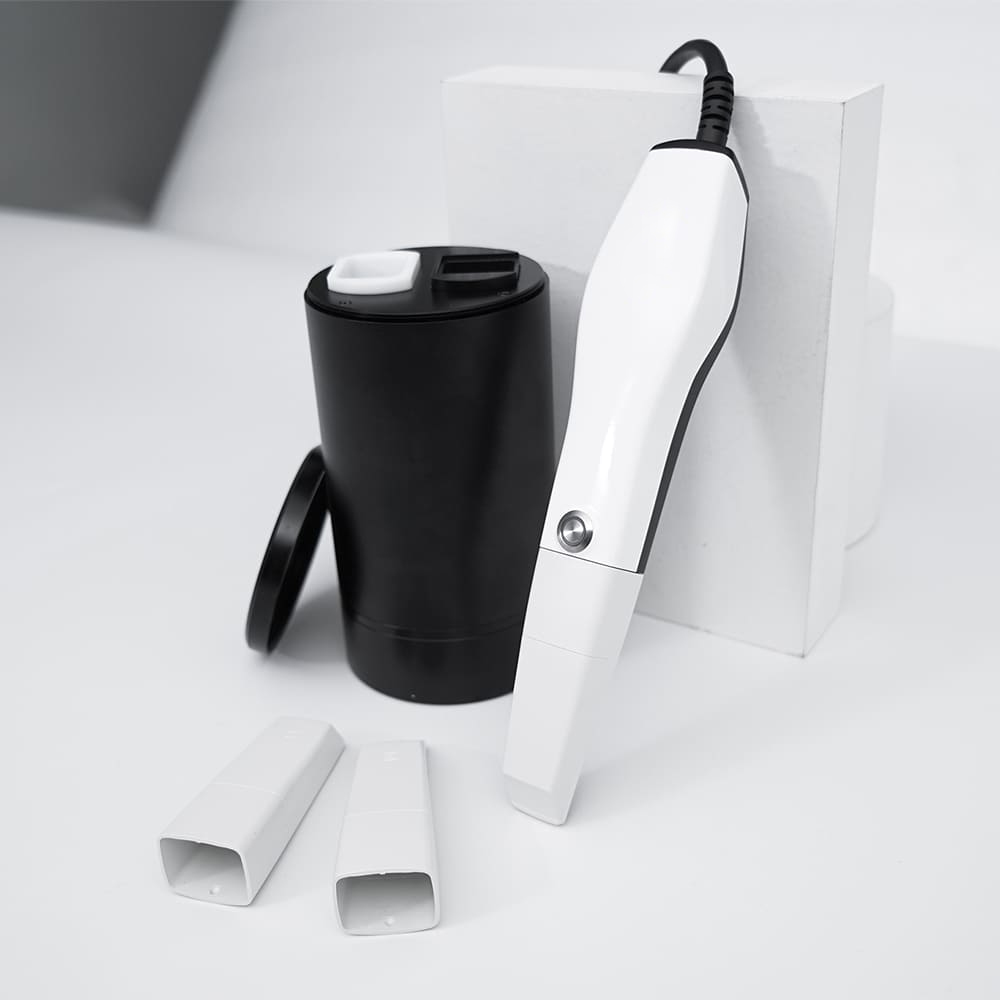

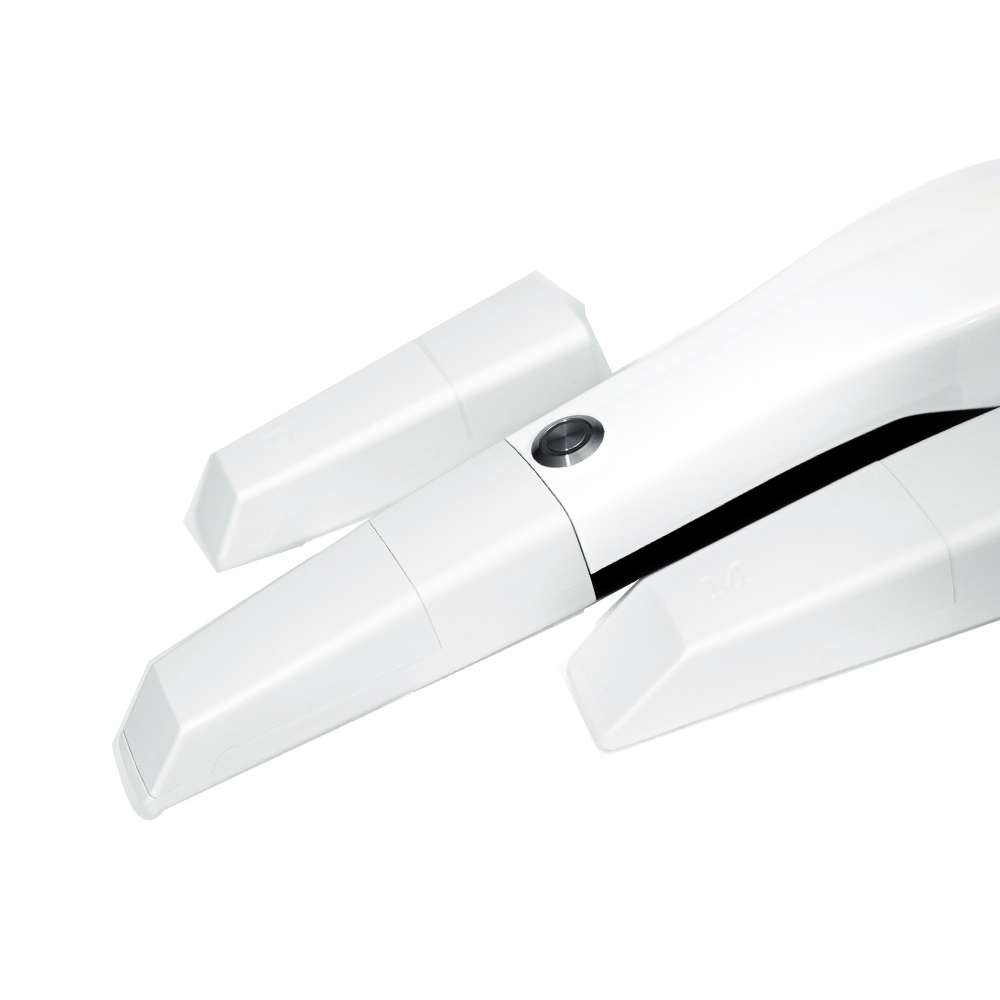

Tip Types	3 types(N/M/D)
Number of Tips included	x5 (Autoclavable)
Tip Autoclave Cycle	20 times
Calibrator	Automatic
Scanning Control	Button
Data Interface	USB3.0
Cable Length (m)	2m
Power Supply Type	AC/DC Medical Power Adapter
Supply Voltage (V)	100-240V/50-60Hz
Supply Current (A)	0.7-1.5A
Storage Temperature (C)	-10℃-55℃

High resolution and true image

Reproduce the real state of teeth
Accurate anatomical features
3D high-definition color, visual communication
Easy and exciting treatment experience

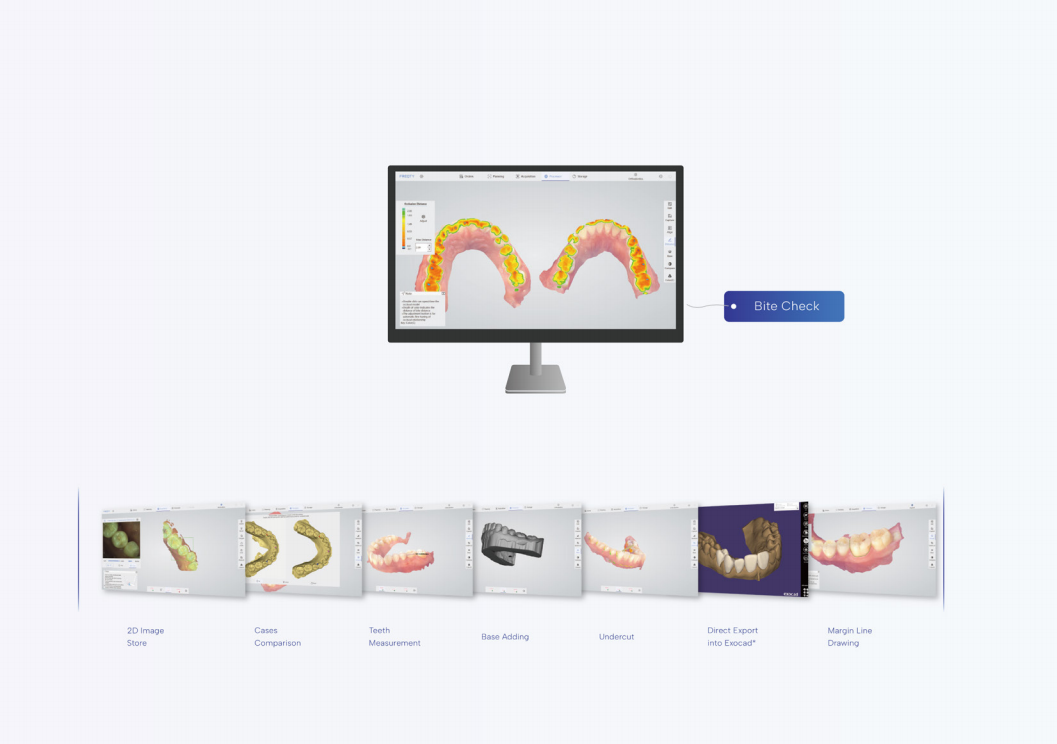

Various range of software

Clear and easy Margin Line drawing Pre-op Scan available for Implant and restoration
Comparison of two sets of data such as denture and full arch Enhanced scanning option for Veneer

Case selection and finalized report

Auto Preparing the case report to the labs
Various options to select in reports such as Bridge or Crown

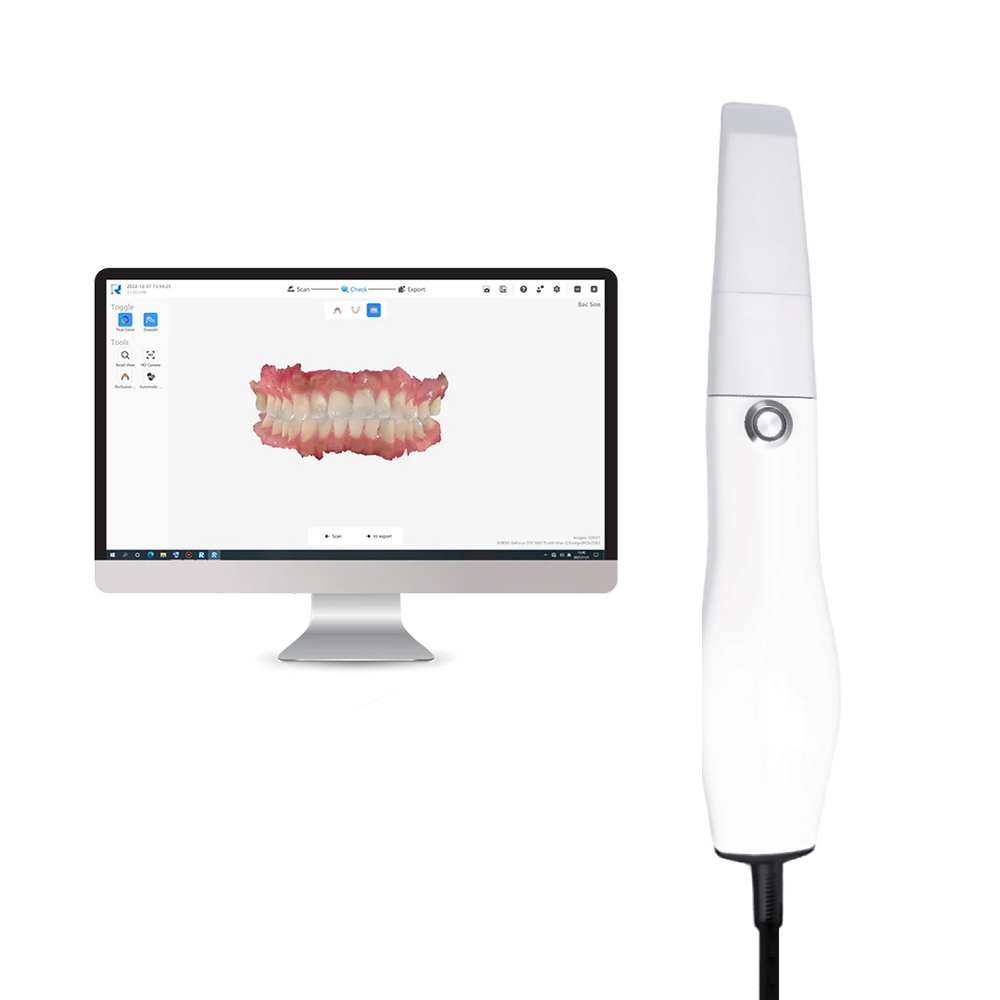

Convenient tools for clinics and laboratories

Multiple platforms to access the case

3D preview allows to be accessed via the phone
Share the cases to patients immediately after scanning
Fully prepared case reports to the labs
One click link directs to EXOCAD

Revolutionary Improvement*

 Scanning speed improve 70%
Handpiece weight decreases 10%
Data accuracy improves 30%
Height of tips decreases 14%
 Compared to the P2

Restoration

Accurate and clear shoulder margin brings efficient design, and high-definition color images help dentists effectively distinguish between gingiva and teeth.One visit, immediate restoration.

Implant

Fast scanning with a large field of view, easily capture 3mm data of cuff, and accurately scan of metal path pin. No need to do
repeat impression and improve patient treatment experience.

Orthodontics

High accuracy of the full dentition, restore the real state of full arch.
Get orthodontic treatment quickly.and save time for more patients

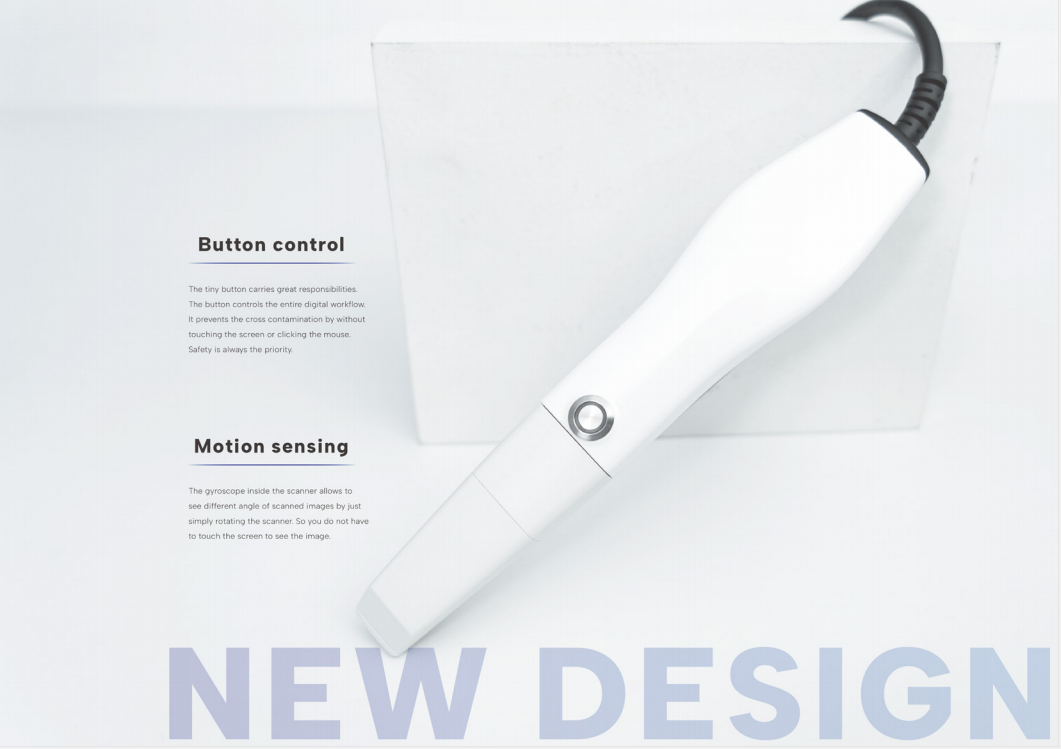

The new generation PANDA P3 is only 228 grams.18g lighter than PANDA P2, reducing the burden on dentists' hands again. A small button carries a huge responsibility, controlling the entire digital workflow. It prevents cross-contamination by not touching the screen or clicking the mouse. The gyroscope inside the scanner can rotate the scanner to view scanned images from different angles without touching the screen.
