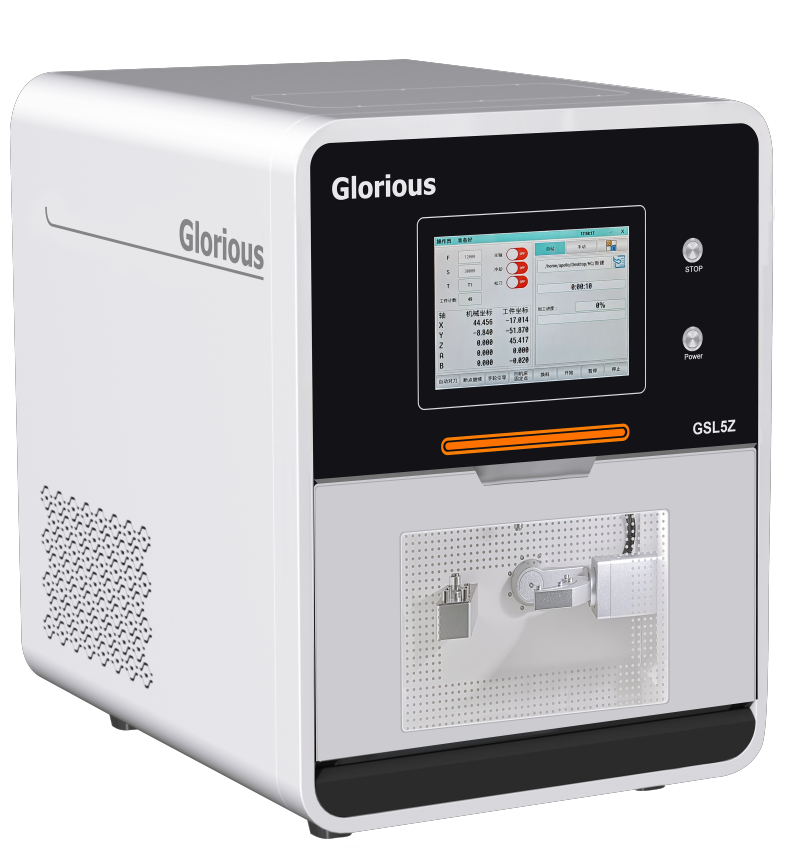

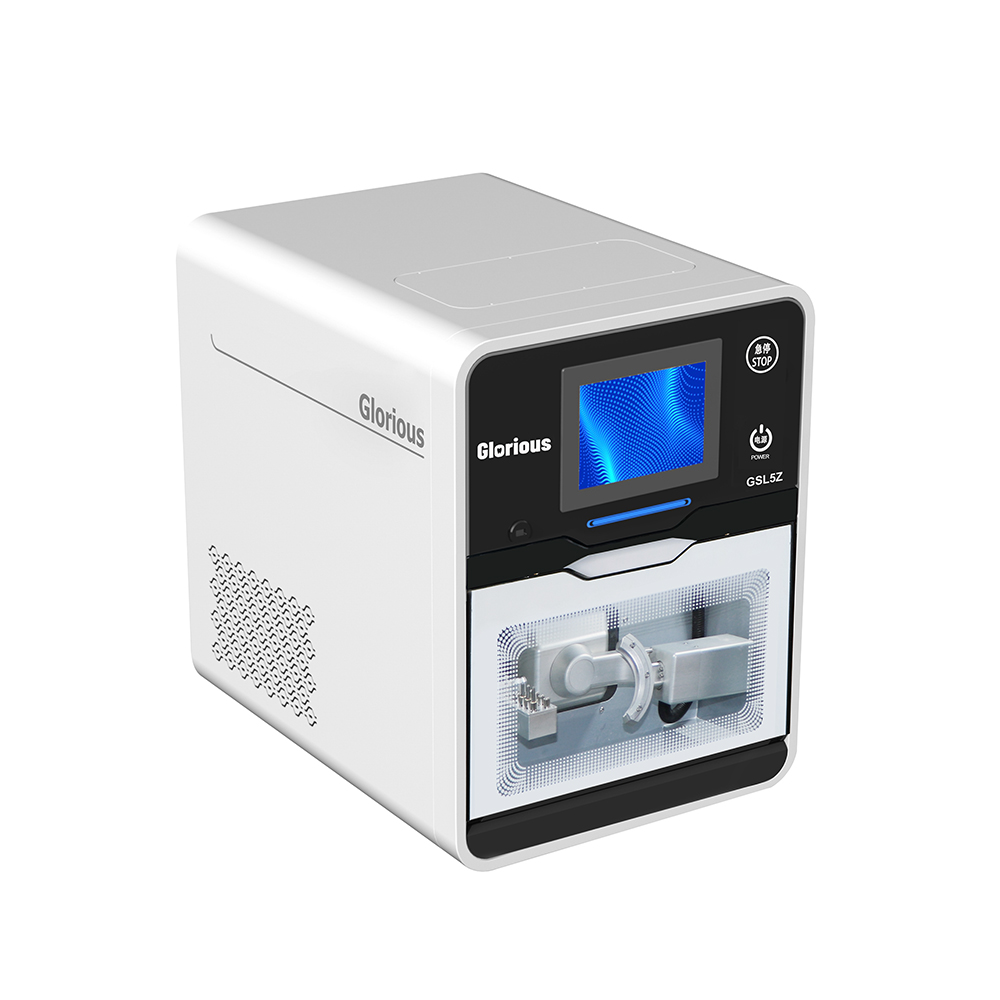

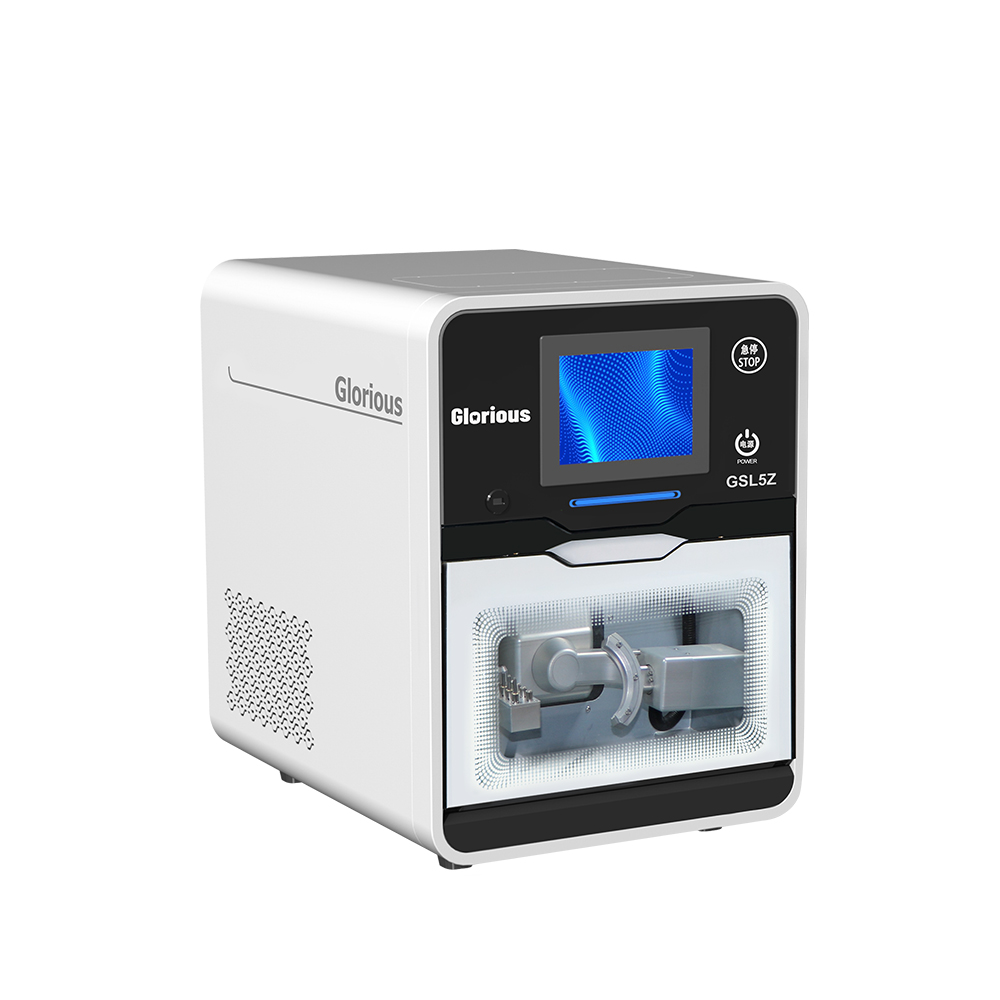

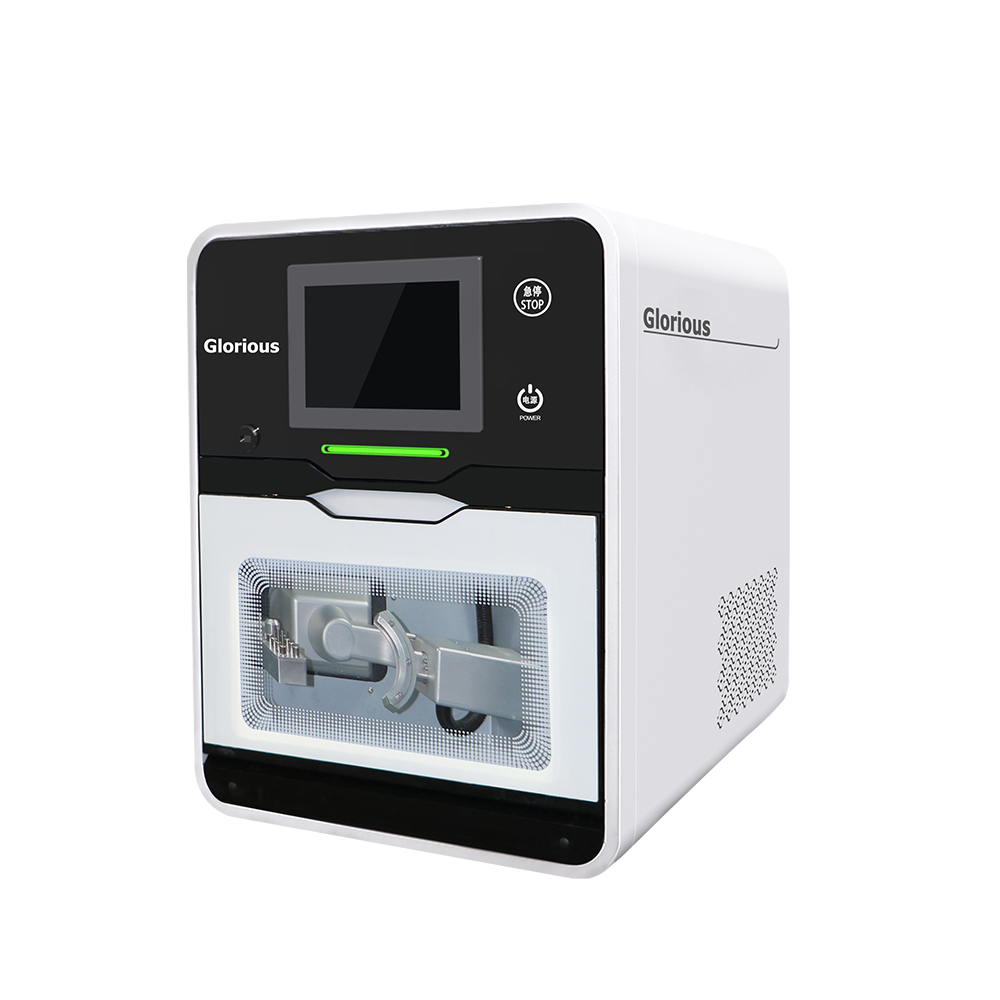

Dental Milling Machine

Model number:     GSL-5Z

Milling mode:     Dry cutting

Material:     Zirconia/Wax/PMMA and some soft material

Spindle:     Water cooling spindle, 3000-40000 rpm, with 3-6 pcs automatic tool change

Working size:     780*650*890mm

Weight:     170KG

payment method:  Western union,bank transfer,paypal,T/T,visa,credit card.

Product Description




Glorious new model Cad cam 5 Axis Dental Milling Machine ,It is a Dry 5axis milling machine, For milling  zirconia disc ,  wax blocks, PMMA and PEEK material .

Cad cam 5 Axis Dental Milling Machine is a modern digital dental technology. This technology utilizes advanced CAD/CAM systems to complete dental restorations and other accurate dental treatments in minutes with fantastic accuracy and speed.

Compared to traditional handmade instruments, CAD CAM 5 Axis Dental Milling Machine offers greater precision and accuracy. This dental technique uses advanced CNC machines to carve teeth and restorations of all shapes and sizes with great precision. Due to its precision and speed, it helps dentists complete dental treatments in a short period of time, improving patient satisfaction.

In addition, Cad cam 5 Axis Dental Milling Machine can improve work efficiency, reduce patient wait times, make it easier for dentists to perform occlusal tests, and reduce unnecessary second consultations. It is also possible to produce more accurate and comfortable dental restorations, such as temporary or permanent crowns, bridges, etc., to provide patients with a more technologically rich treatment experience.

Cad cam 5 Axis Dental Milling Machine is a huge invention for dentists and technicians. It makes dental treatment easier by reducing the time and cost of traditional denture production, and improving the quality and reliability of dental restorations, while allowing patients to experience more professional treatment and better treatment results.


Physical characteristics






Name5 Axis dental materials milling machine
ModelGSL5Z
5 axisX,Y,Z,A,B
A axis+360°
B axis土25°
Control systemTaiwan Syntec-HC10E-S
Milling modeDry
Supply voltage220V
Spindle power0.45KW
Rated frequency50/60HZ
Air pressure0.6-0.8Kpa
Speed of spindle60000rpm/min

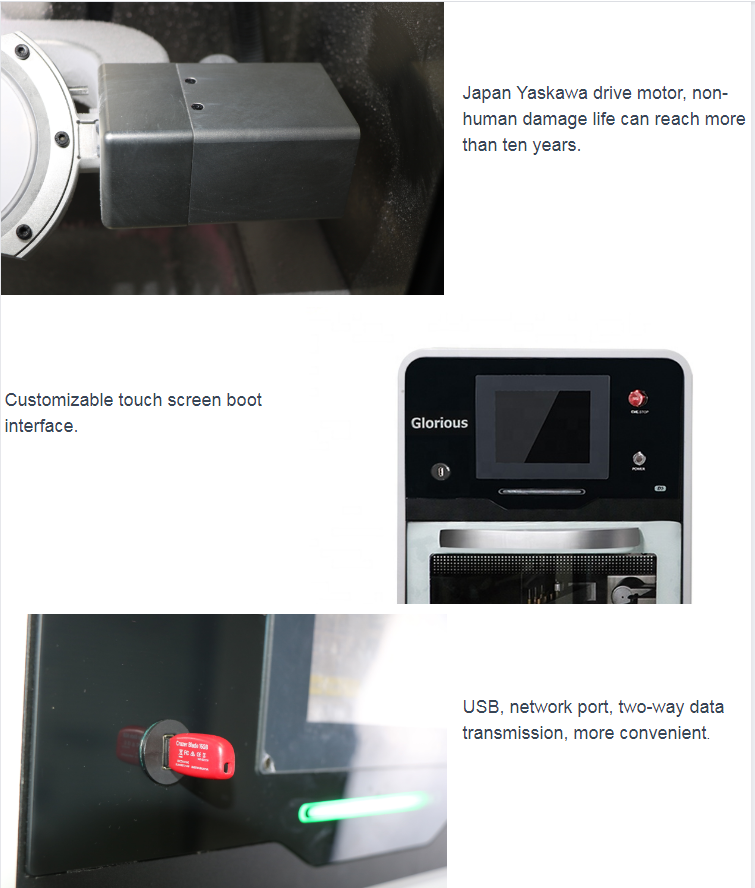

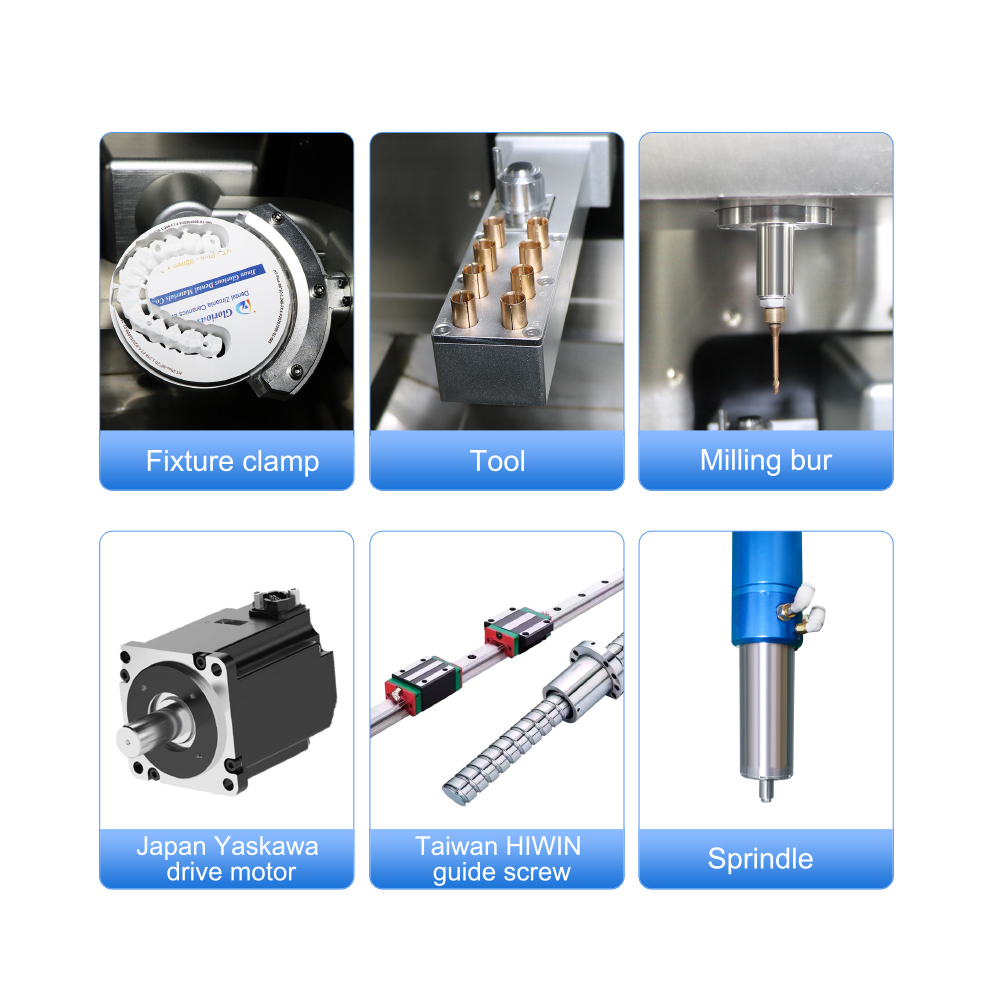

Motor and DrivesJapanese Y askawa servo and drives
Guide railTaiwan HIWIN
Ball screwTaiwan HIWIN
SliderAviation aluminum plate
Process timeZirconia: 8min

Wax: 5min

PMMA:7min

PEEK:10min
Size780* 650* 890mm
Weight170kg



Advantage

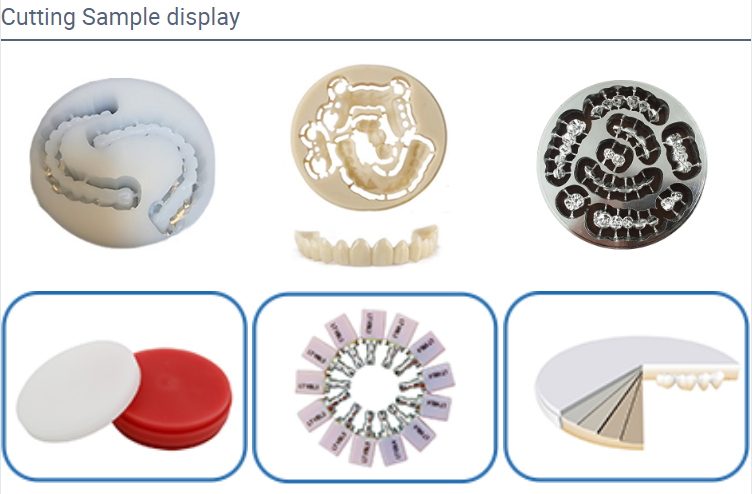

Cutting Sample Display
