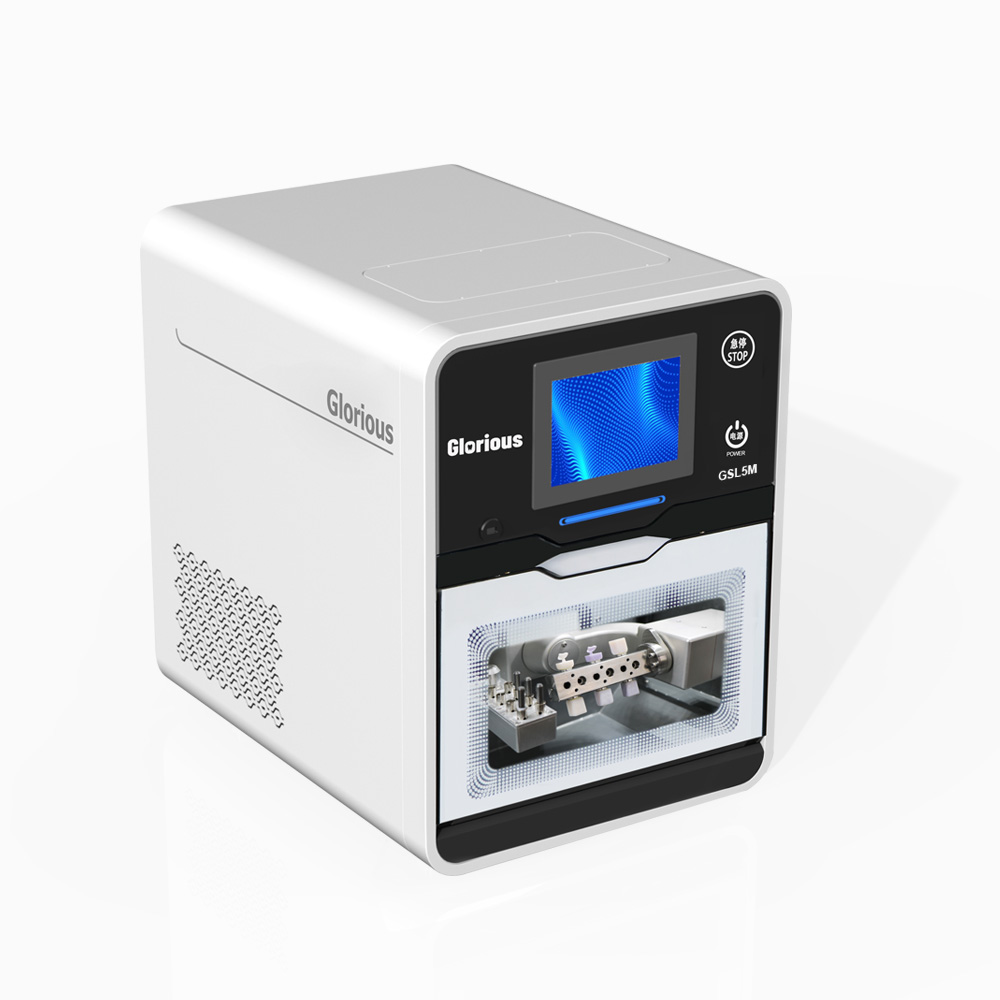

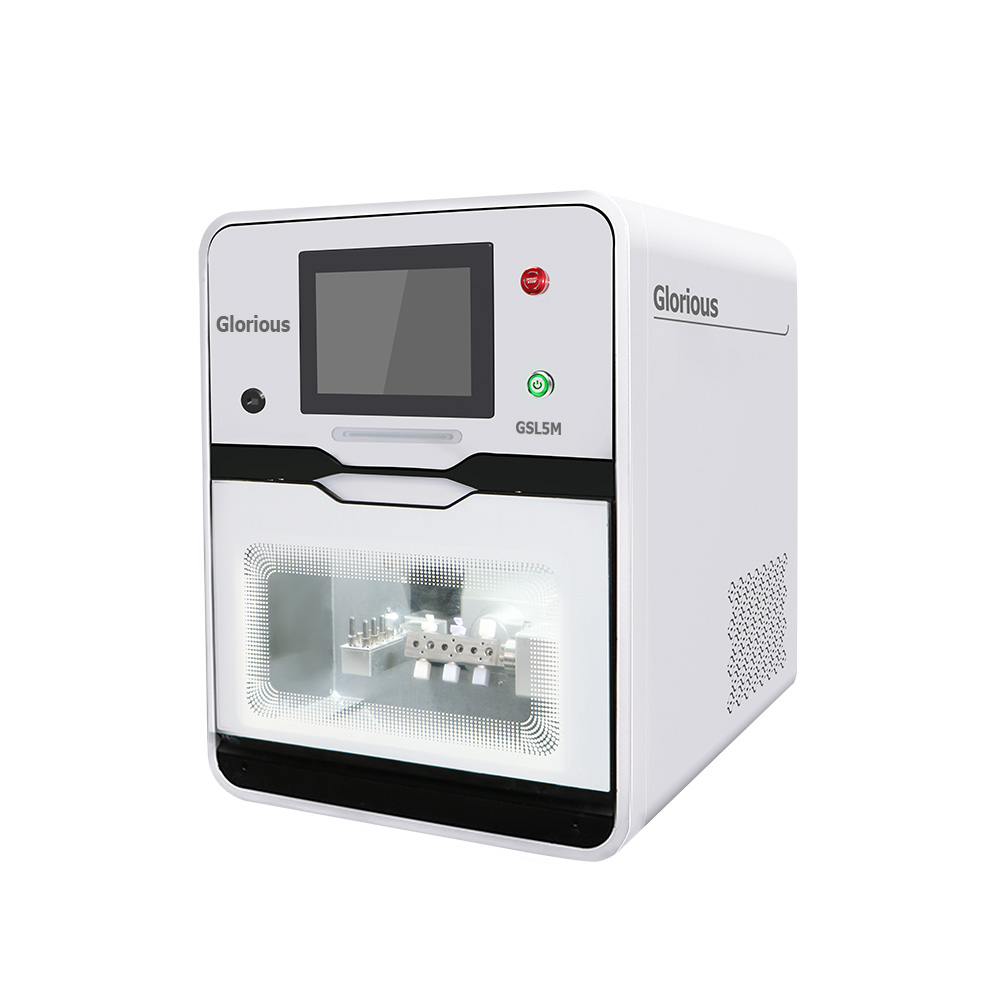

Dental Milling Machine GSL-5M

Model number: GSL-5M

Weight: 360kg

Working size: 810*725*1670mm

Milling mode: Wet cutting

Spindle: 1.8kw 3000-40000rpm,16 pcs automatic tool change

Materials: Wax/PEEK/PMMA/Lithium disilicate blocks/Titanium/Pre-mill

Driving system: Panasonic servo motor with Shimpo reducer

Warranty: Two years and 24h online service

payment method： Western union,bank transfer,paypal,T/T,visa,credit card.

Inquire Now Next Product

Products Display

Product Intructions

GSL5M not only retains the characteristics of precise five-axis linkage, but also increases the power of the spindle to achieve precise and stable grinding.

*Premill abutment :20min*Lithium disilicate: 20min
*Elastic ceramic: 20min
*Amber ceramic:20min

SMOOTH CONTROL OF EACH AXIS MOVEMENT

Five-axis linkage machining precision cutting ensures the fine machining of the undercut area to the greatest extent. and the
error is less than 0.02mm;

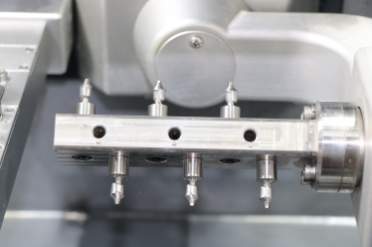

CUT SEVEN PREMILL AT A TIME

Equipped with high-performance ball screw, it can control the movement of each axis more smoothly and improve the precision of machining.

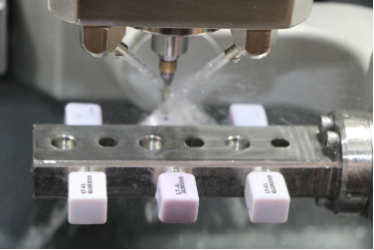

CUT SIX OR SEVEN GLASS CERAMICS AT A TIME

Imported high-precision, high-frequency, high-speed spindles are used to ensure the fine machining of undercut areas to the
maximum extent

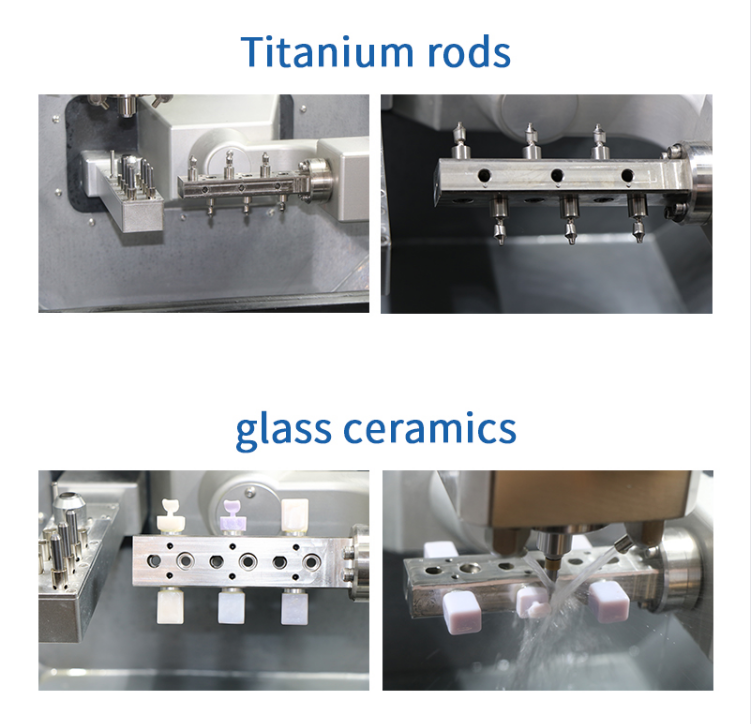

Millable Material

Product parameters

Control system	Taiwan Syntec-HC10E-S
Motor	Japanese Yaskawa servo and drives
Ball screw Guide rail	Taiwan HIWIN
Size	680520660
Tools	8
Axis	X、Y、Z、A、B
Supply voltage	AC220V
Rated frequency	50/60HZ
Spindle power	1.2kw
Air pressure	0.6-0.8Kpa
Spindle cooling method	Water cooling
Weight	150KG
Processing range A-axis B-axis	360° ±30°
Spindle Method Rotating speed	Wet 60000rpm/min
Processing material	Premill abutment , Lithium disilicate, Elastic ceramic. Amber ceramic
Processing time	Premill abutment :20min Lithium disilicate: 20min Elastic ceramic: 20min Amber ceramic: 20min

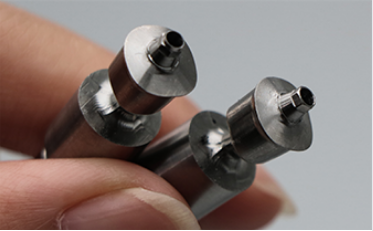

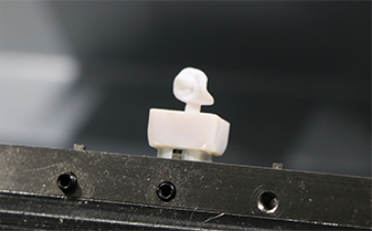

Cutting Sample display
