Vertical Five-axis Milling Machine
High Rigidity、High Shock Resistance、High Stability
Vertical Five-axis Milling Machine
High Rigidity丨High Shock Resistance丨High Stability

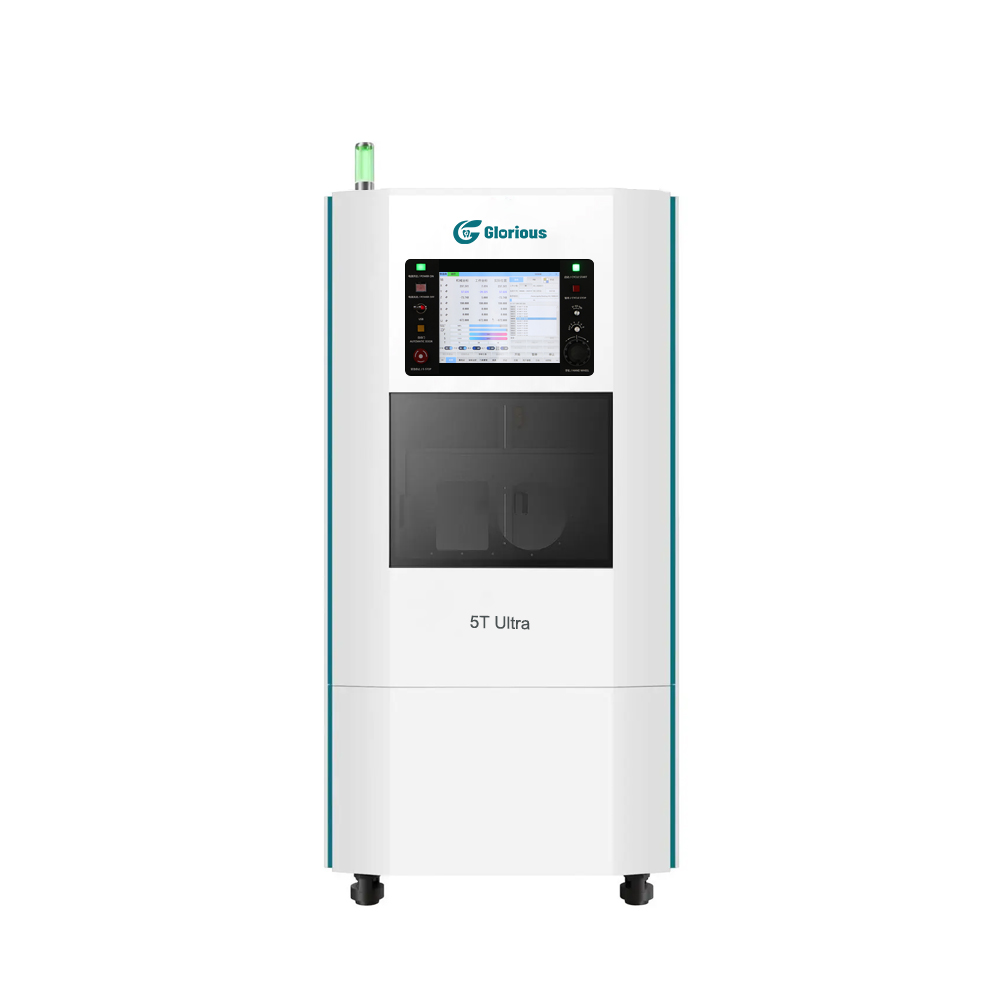

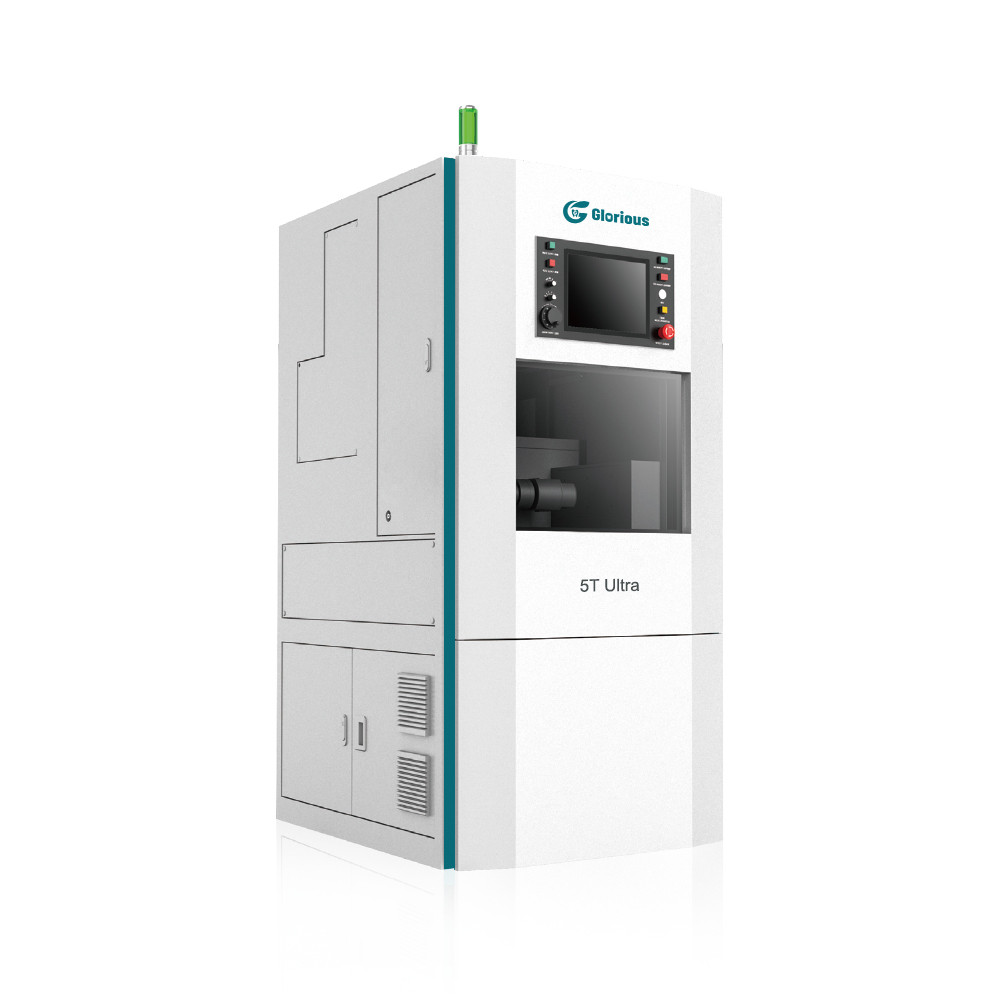

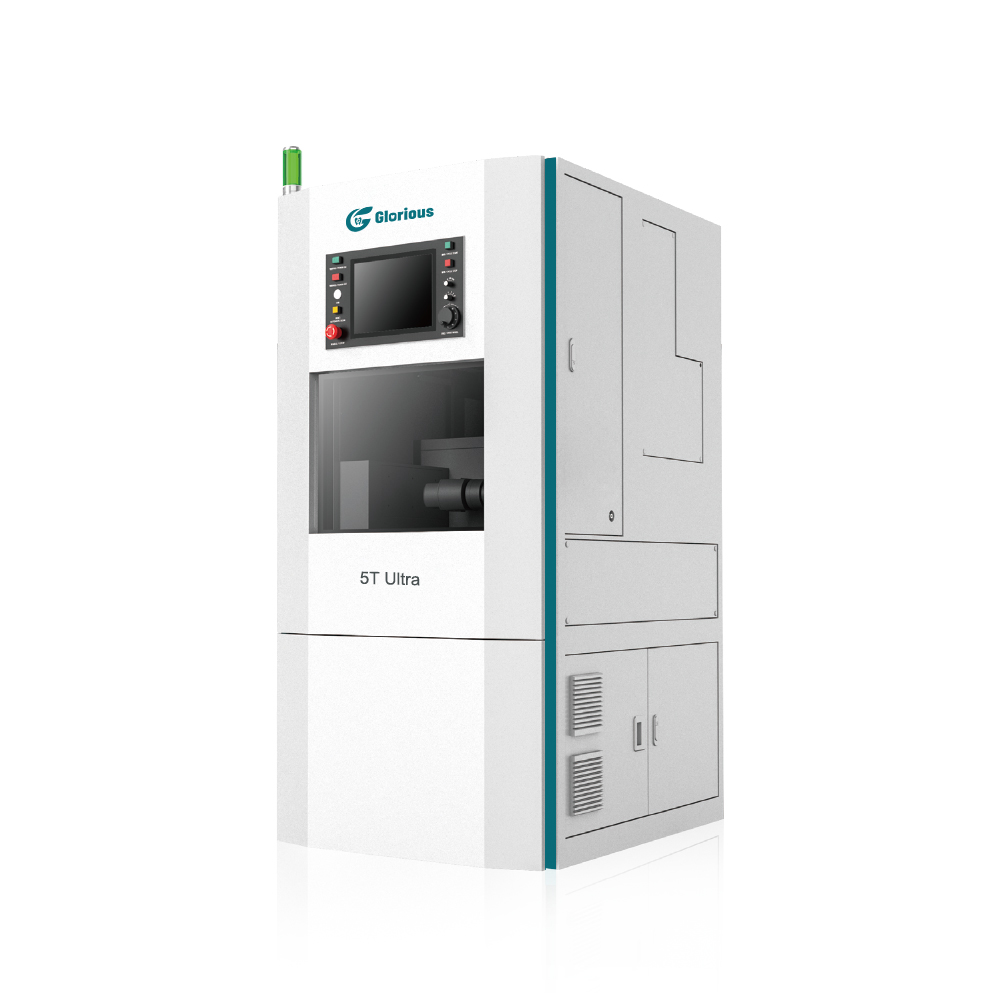

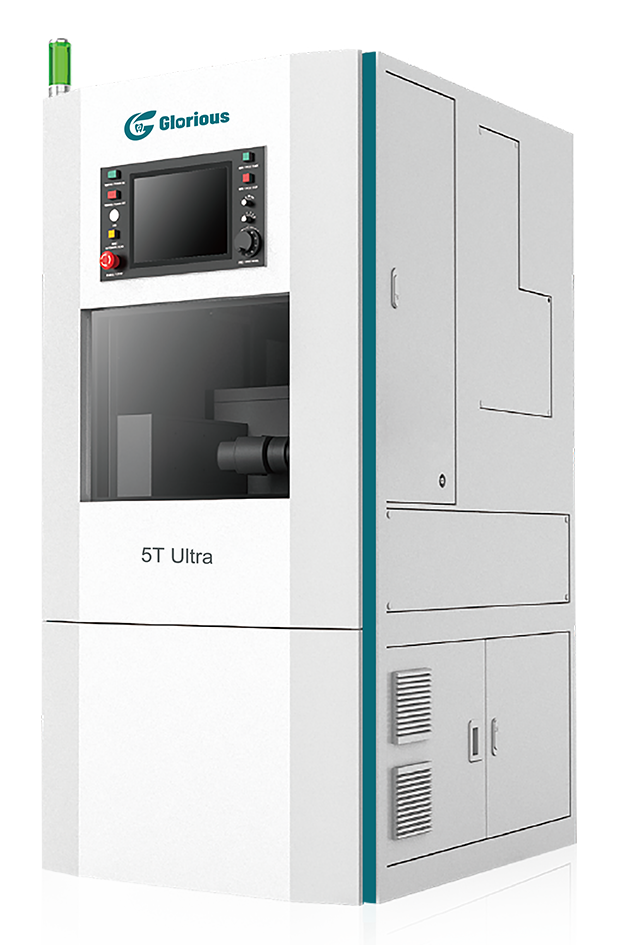

5T Ultra
Vertical Five-axis Machining Center
Every Detail ls Refined
20T Tool Magazine(40T Optional)

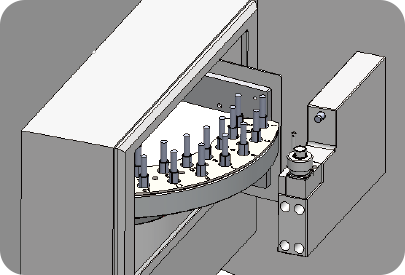

Up to 40T horizontal rotary tool magazine, can changetools directy on the spindle, servo-drven turret, usinghigh-precision sensors to verify whether the tool issuccessfully extracted from the spindle, without relyingon the tool setter, effectively shortening the time
High Rigidity Machining Capacity

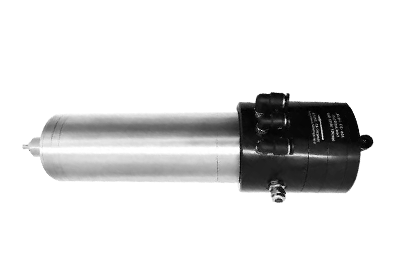

Self-developed high-rigidity direct clamping spindleTool overhang is 20% shorter than that of peersPerfectly compatible with self-developed high-precisionand high-ngidity rotary tableTilting angle range of rotary table +35°
High Rigidity Machining Capacity

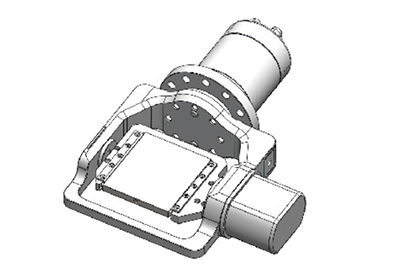

Self-developed zero backlash precision reducerPositioning accuracy s40 inches, repeatability s8 inchesA-axis adopts hollow structure, cable hidden design toprevent entanglement
Stainless steel body IP67 protection grade

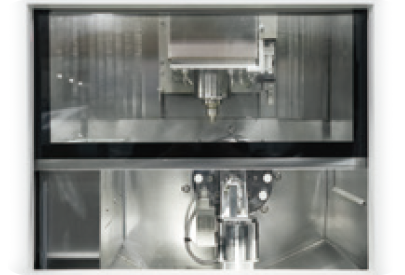

Anti-Pinch Auto Door
Automatic lift door Easy to operate
Large viewing window Fast and quiet
Safe and reliable anti-pinch function

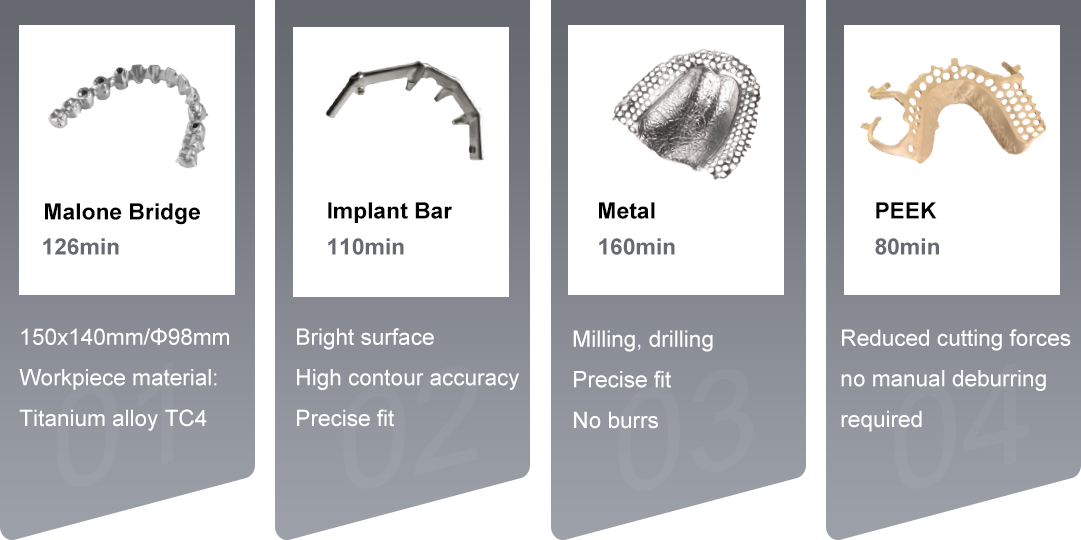

Product Parameters
| Industrial-standard Lightweight Vertical 5-Axis Machining Center |

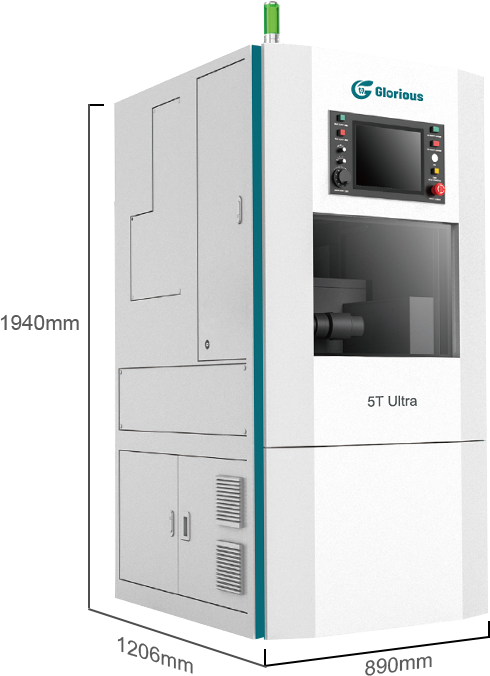

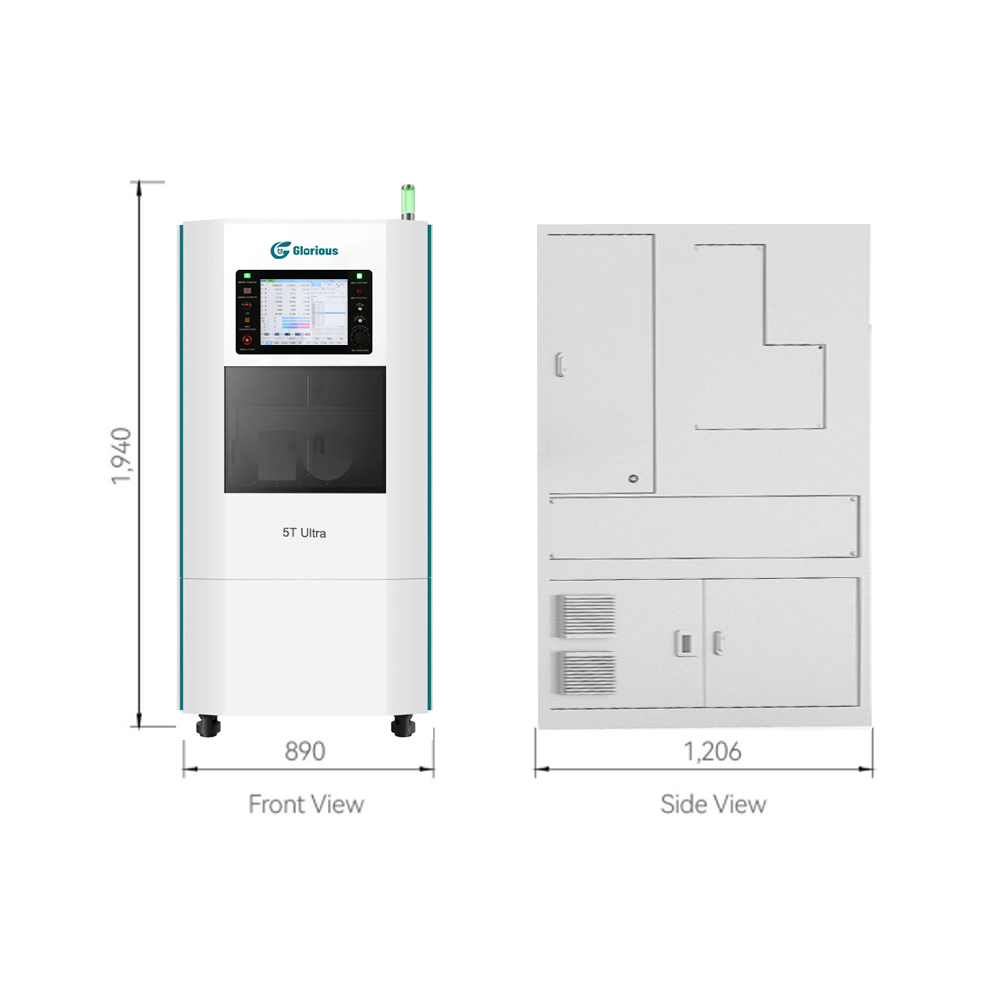

Product Size:890x1206x1940mm Light weight: 1000KG |
| Travel |
X//Z-Axis Travel: 340x150x120mm A/B-Axis Swivel Range: 360°/+35° |
| Worktable |
Max.Workpiece Size:140x150x30mm Dimension:140x150mm Max. Load: 5kg |
| Spindle |
Spindle Taper: Ф6mm Motor Power: 4KW Diameter:Ф80mm Max.Speed (Long-Duration):28,000rpm Max.Speed (Short-Duration):40,000rpm |
| Accuracy |
X//Z-Axis Positioning Accuracy:0.005mm A/B-Axis Positioning Accuracy: ≤40 X//Z-Axis Repeatability:0.003mm A/B-Axis Repeatability: ≤8 |
| Tool Magazine |
| Holding Capacity: 20140(0ptional) Max.Tool Length:55mm Max.Tool Diameter (Full):Ф6mm Max.Tool Length:55mm Type:Horizontal Carousel Type |
